Product Overview

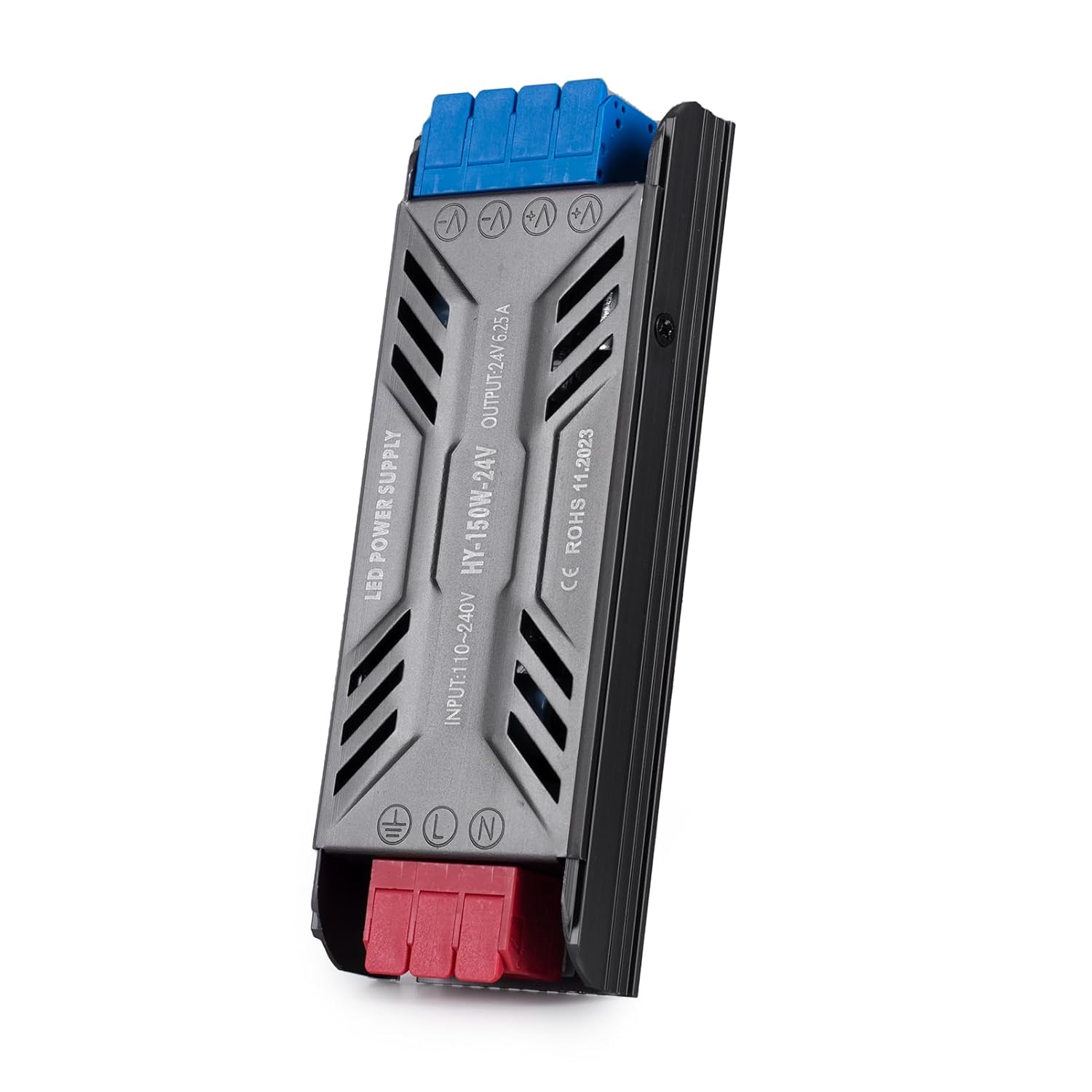

This SUCIKORIO LED driver is an ultra-slim transformer designed to convert 110-240V AC power to a stable 24V DC output. It is suitable for powering LED strip lights and other low-voltage lighting applications. The unit features a durable aluminum housing and is designed for wall or surface mounting.
Key Features
- Converts 110-240V AC to 24V DC
- 150W maximum power output
- 6.25A current rating
- Built-in overvoltage, overheating, overcurrent, and short circuit protection
- Durable aluminum housing with a honeycomb design for heat dissipation

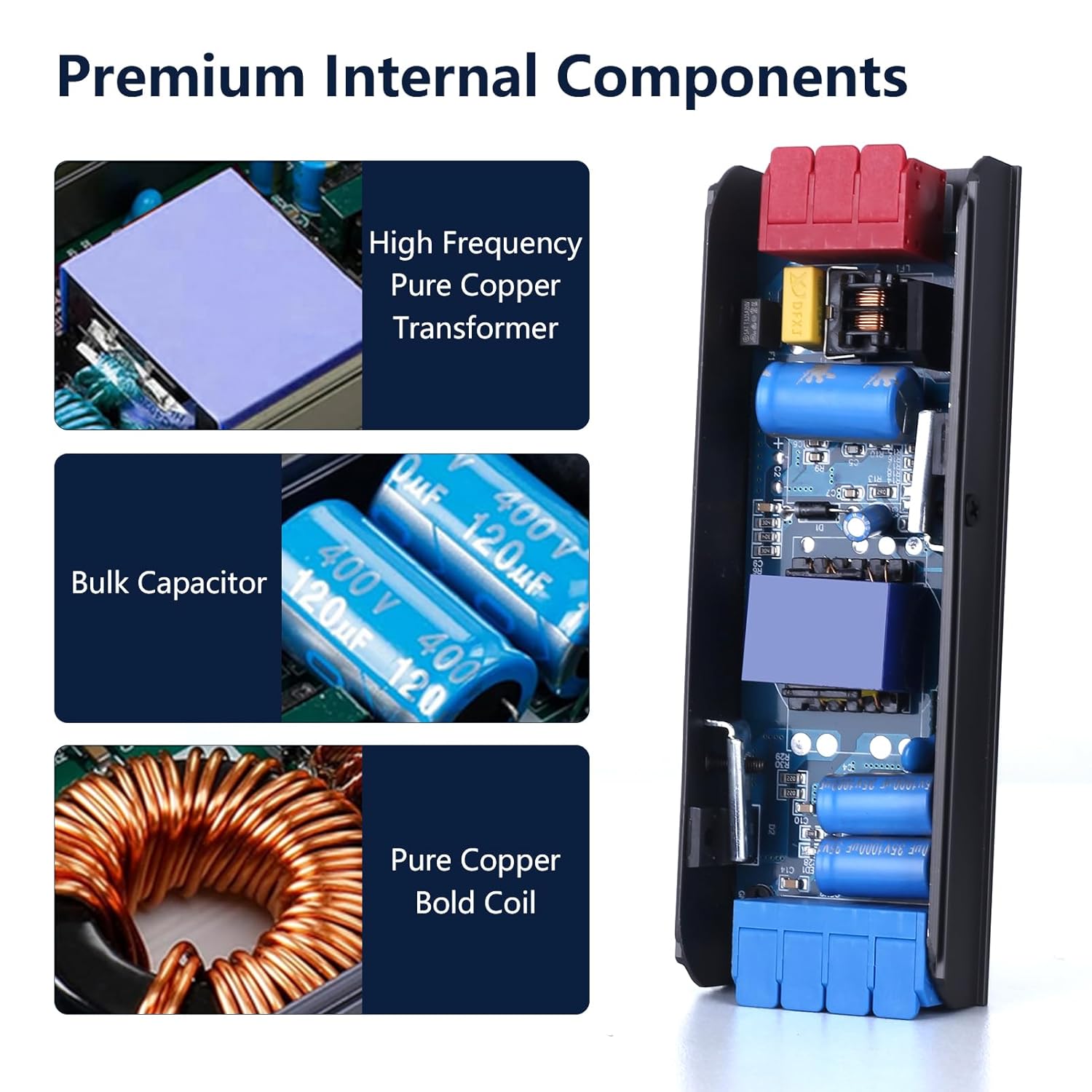

- Pure copper internal coil for improved conductivity and longevity
- Quiet operation

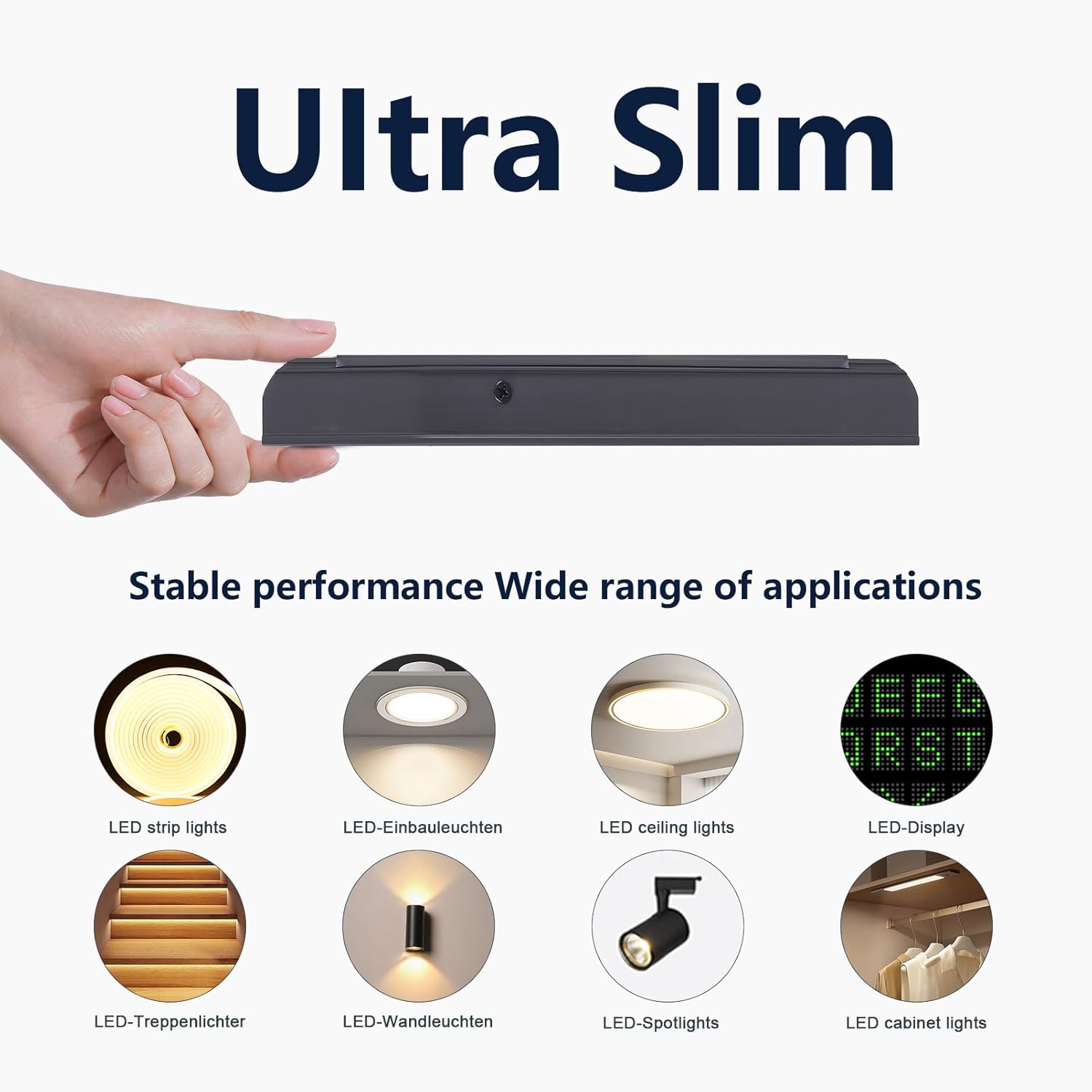

- Ultra-slim design
How to Use

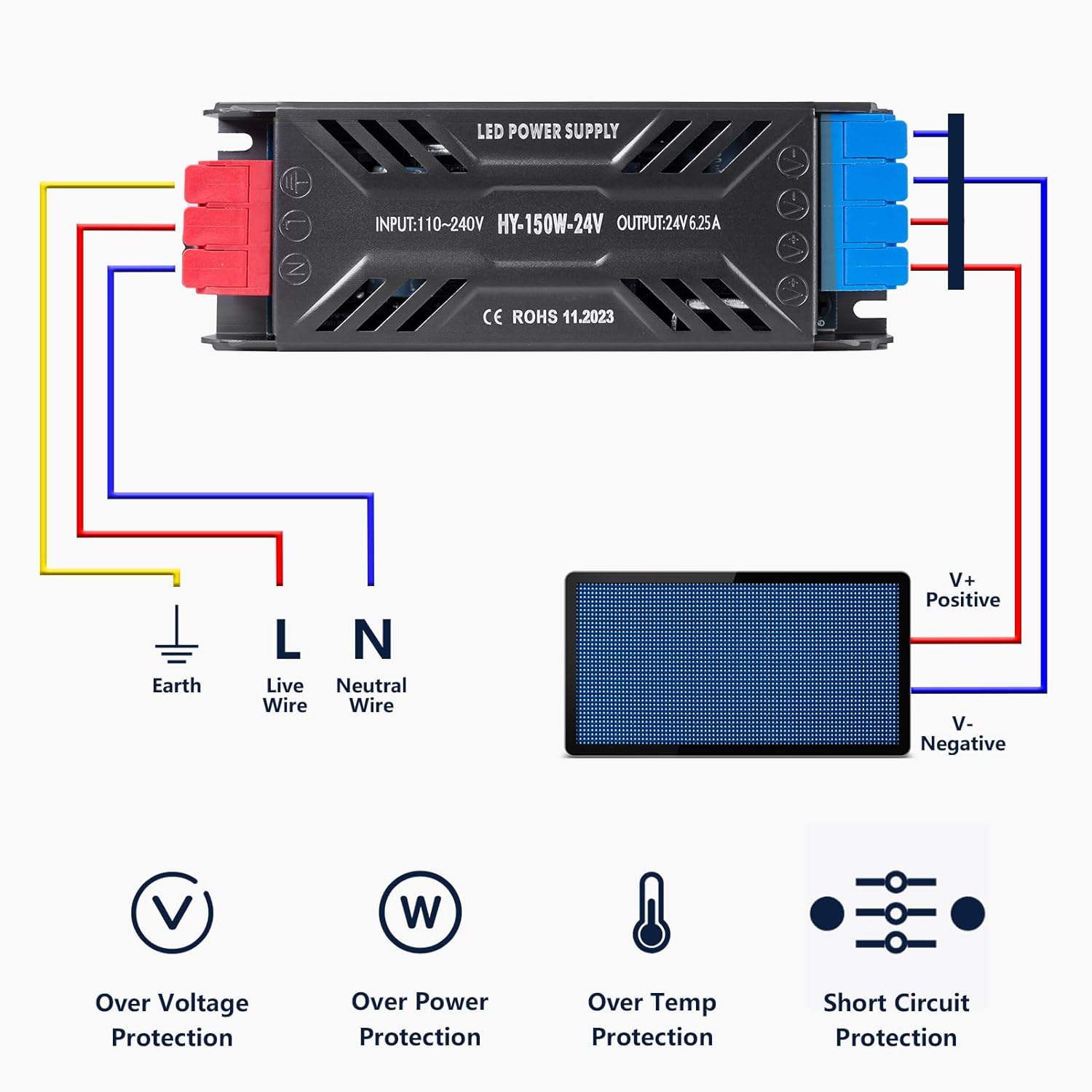

Connect the input terminals to a 110-240V AC power source and the output terminals to your 24V DC LED lighting fixtures. Ensure proper wiring and secure mounting. This driver is not dimmable.

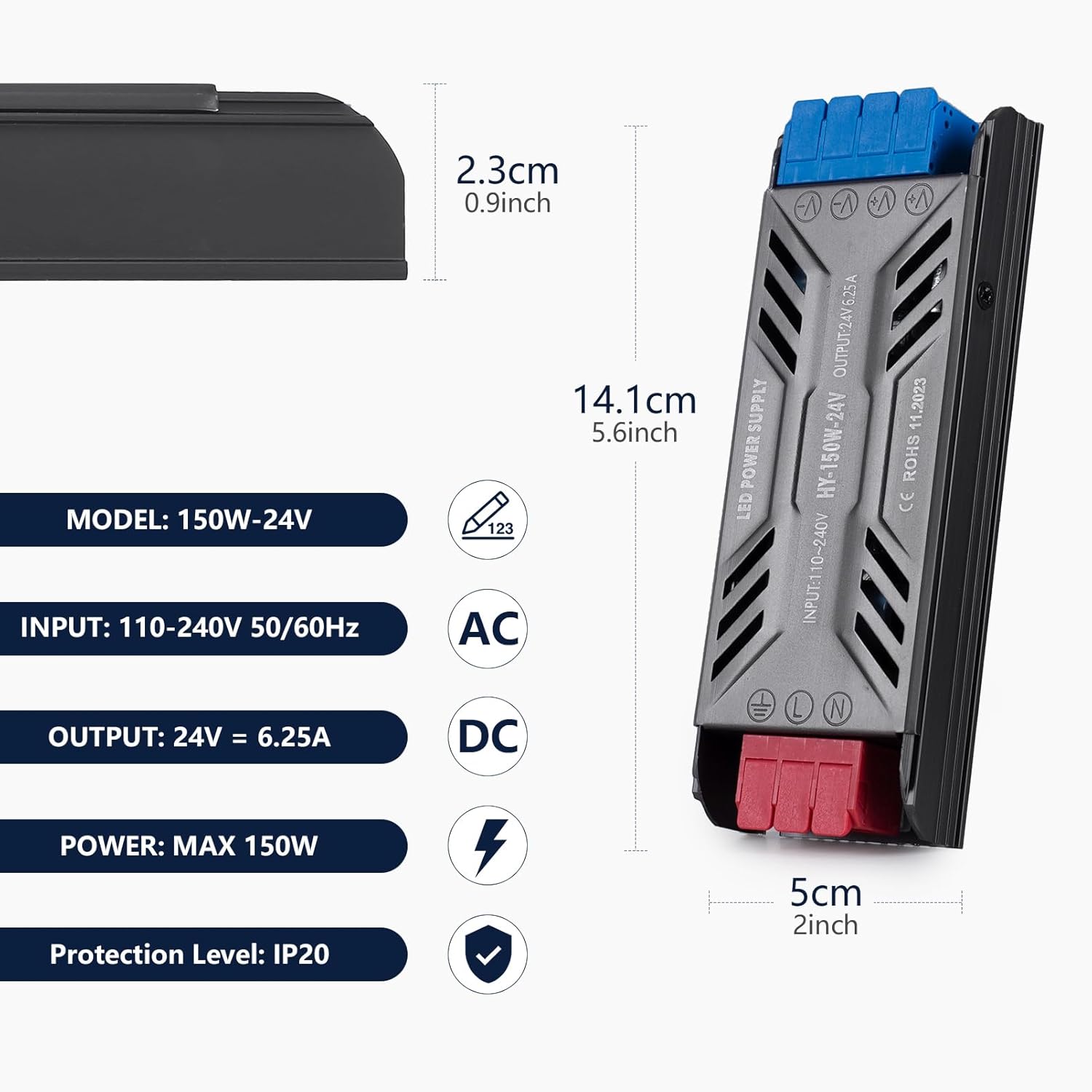

Specifications
- Brand: SUCIKORIO
- Input Voltage: 110-240V AC 50/60Hz
- Output Voltage: 24V DC
- Current Rating: 6.25A
- Maximum Power: 150W
- Material: Aluminum housing
- Mounting Type: Wall Mount, Surface Mount
- Protection Features: Overvoltage, overheating, overcurrent, short circuit
- Coil Material: Pure copper
- Dimmable: No
