Product Overview

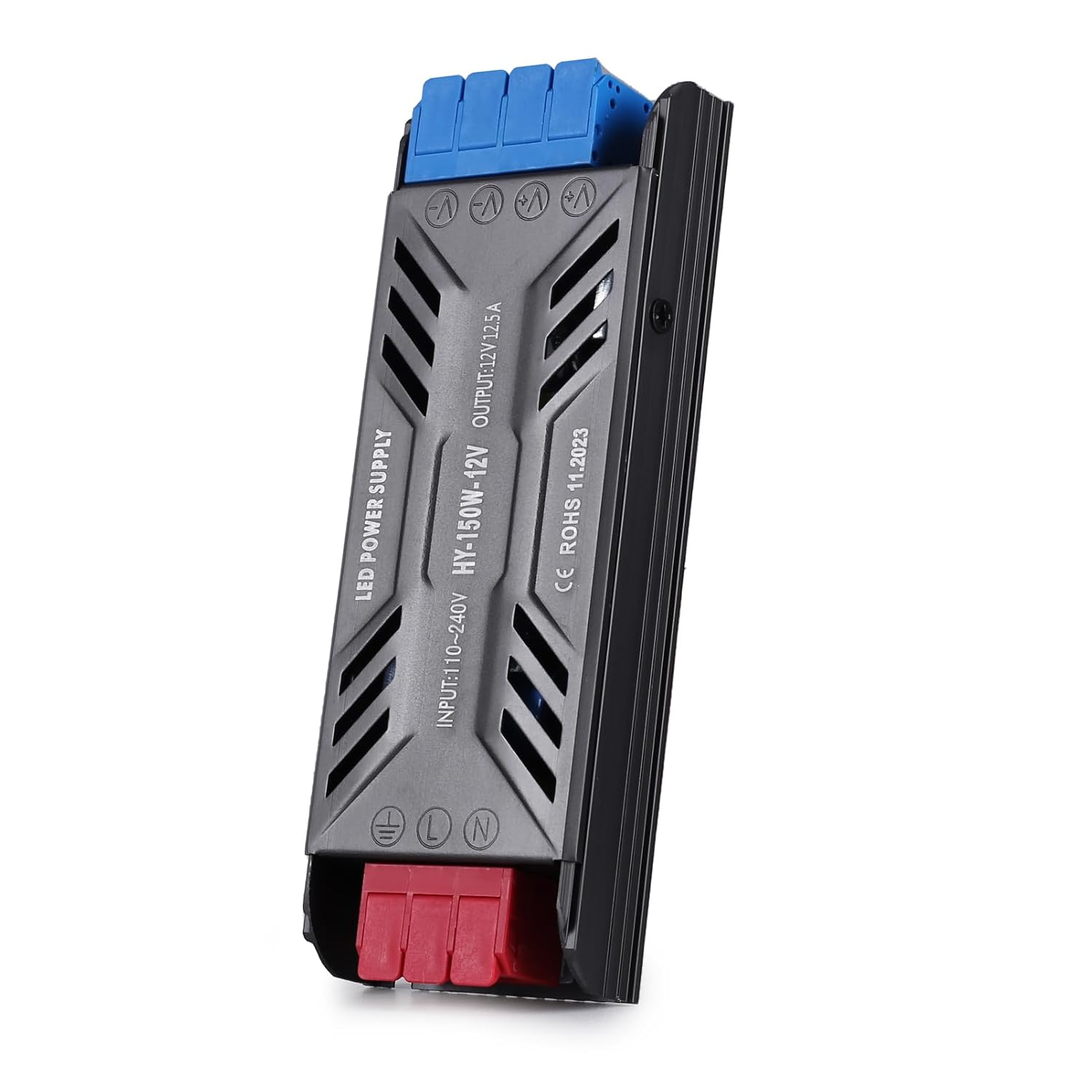

This SUCIKORIO LED driver is designed to convert 110V-240V AC power to a stable 12V DC output. It features a slim design suitable for various mounting types, including wall and surface mount applications. The unit provides a current rating of 12.5 Amps and a maximum power output of 150W.

Key Features

• Input Voltage: 110V-240V AC (50/60Hz)
• Output Voltage: 12V DC
• Maximum Power: 150W
• Current Rating: 12.5 Amps

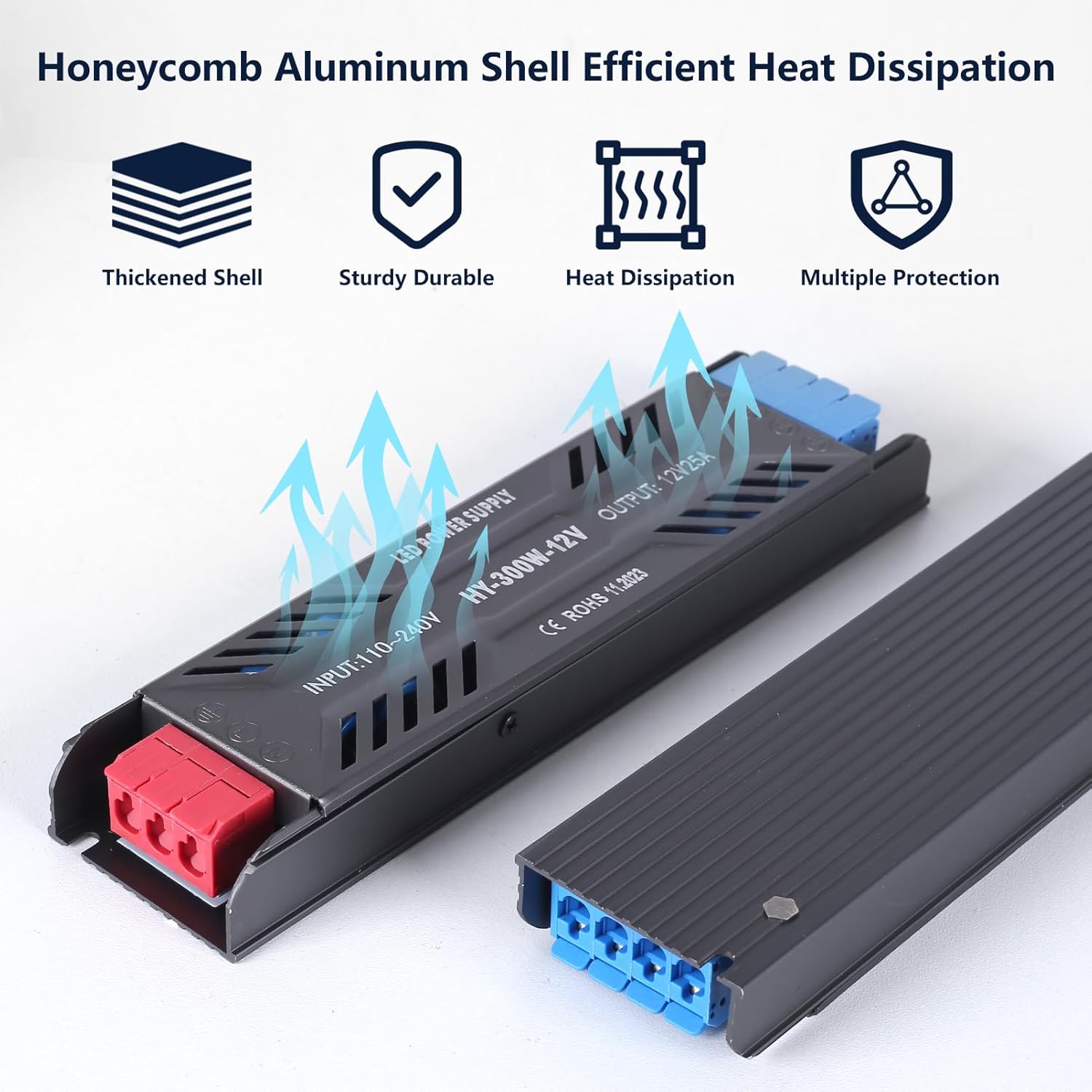

• Durable aluminum housing with honeycomb design for heat dissipation

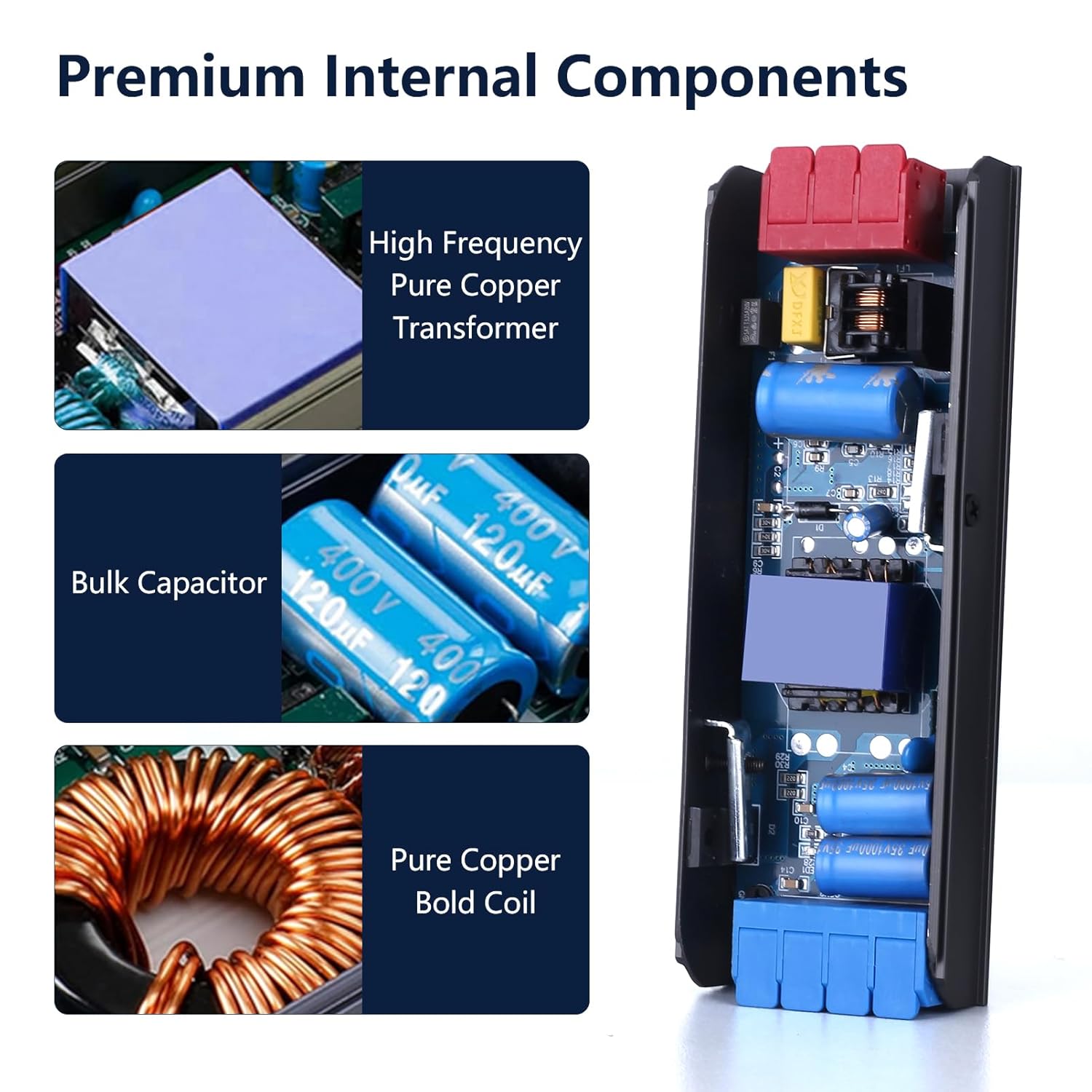

• Internal coil made of pure copper for improved conductivity and lifespan
• Provides overvoltage, overheating, overcurrent, and short circuit protection
• Quiet operation
• Not dimmable

How to Use

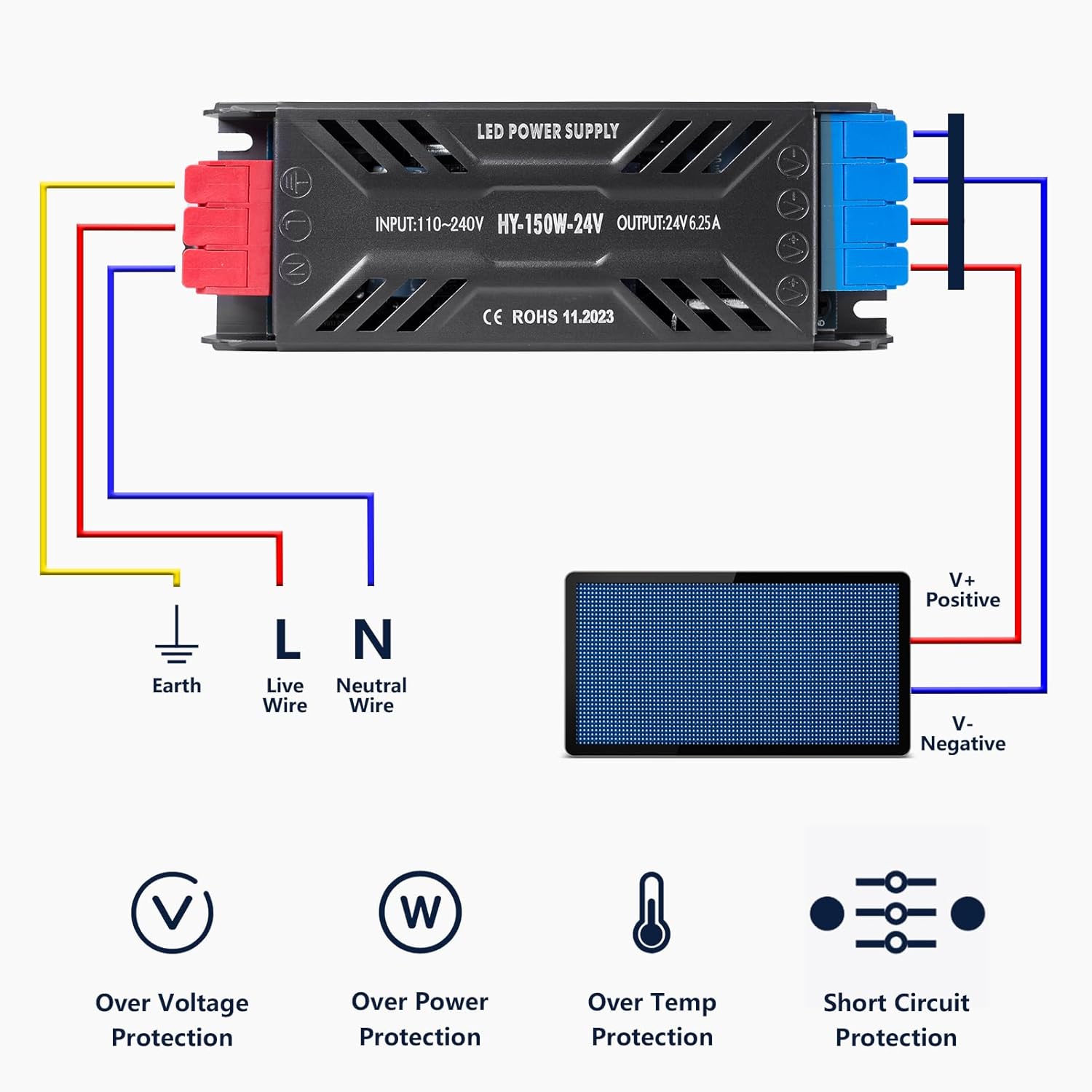

Connect the input terminals to your 110V-240V AC power source and the output terminals to your 12V DC LED lighting or other compatible devices. Ensure proper wiring and ventilation. This power supply is intended for use with LED strip lights and wall lamps.

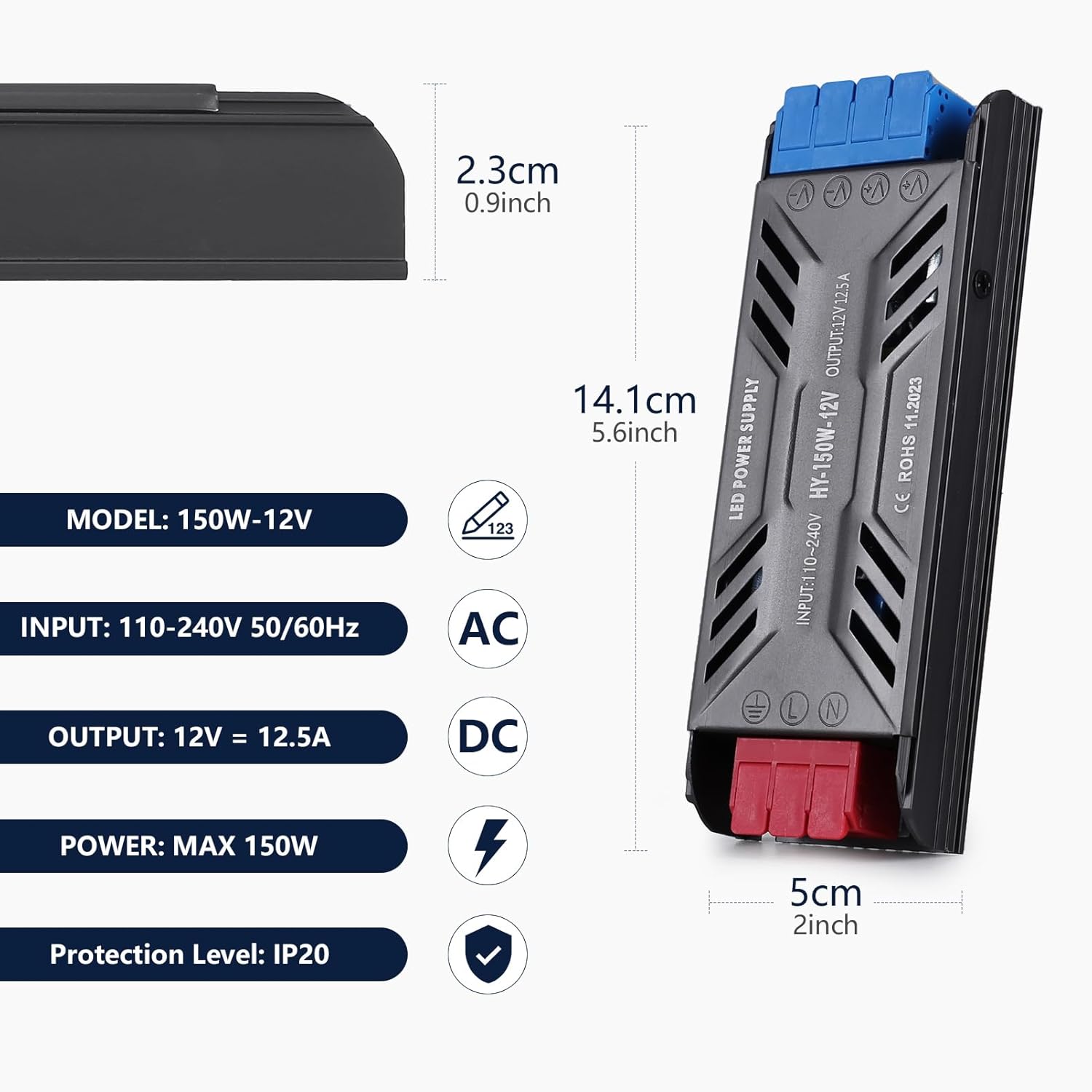

Specifications

• Brand: SUCIKORIO
• Input Voltage: 110V-240V AC 50/60Hz
• Output Voltage: 12V DC
• Output Current: 12.5 Amps
• Maximum Power: 150W
• Mounting Type: Wall Mount, Surface Mount
• Material: Aluminum Housing
• Protection Features: Overvoltage, Overheating, Overcurrent, Short Circuit
• Certifications: CE, RoHS, UL, cUL
• Features: Pure copper coil, Honeycomb heat dissipation design, Quiet operation
• Dimmable: No
