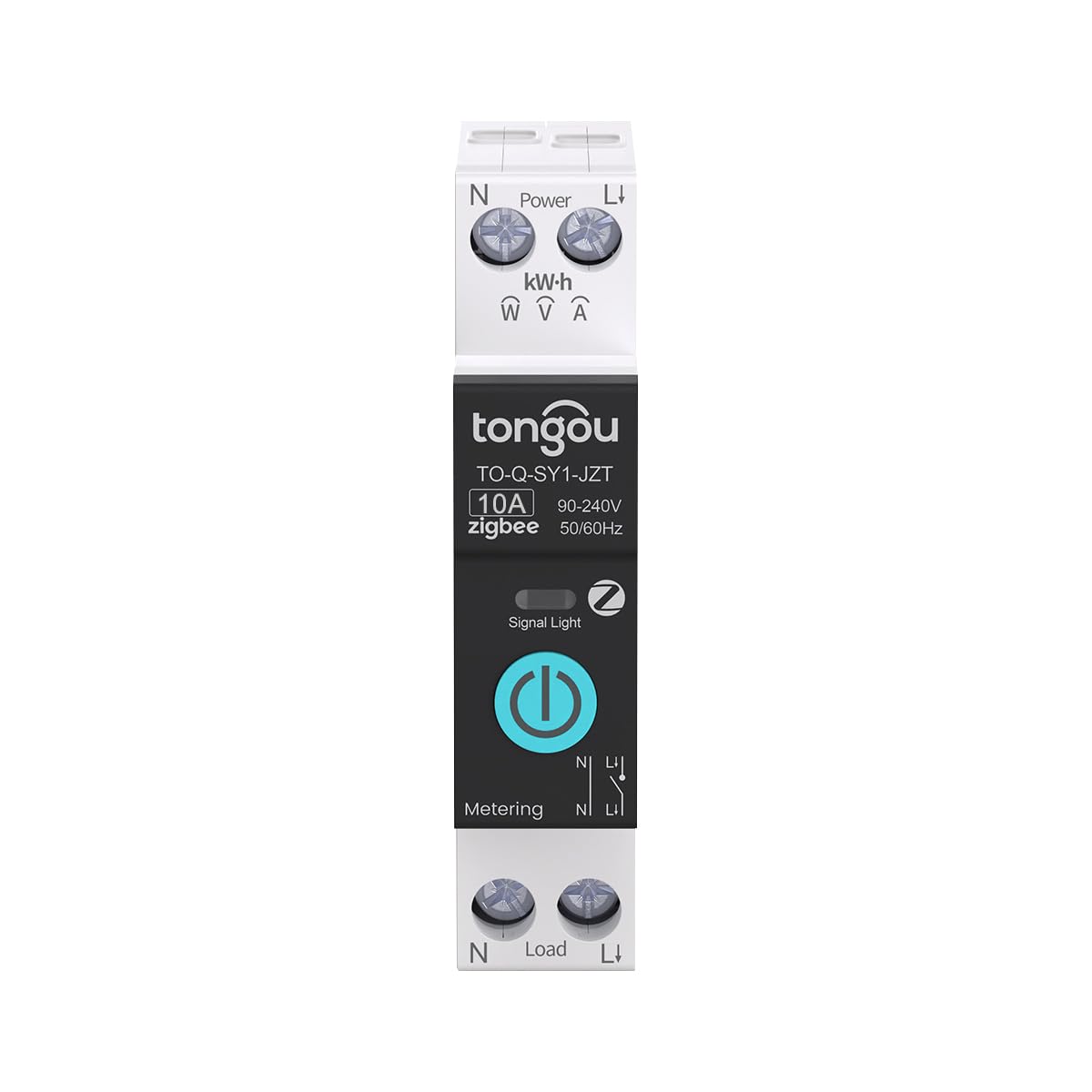

Product Overview

This smart switch operates on an ON-OFF mode and has a current rating of 10 Amps with an operating voltage of 120 Volts AC. It features a normally open contact type and screw terminals for connection. The switch is designed for DIN rail mounting and is made from Nylon PA66 material.

Key Features

• Utilizes ZigBee 3.0 protocol, requiring a TUYA ZigBee hub for connectivity.
• Supports remote control and timer settings for home automation.
• Provides real-time power monitoring.
• Complies with IEC 60947 standard.
• Rated for AC 90-240V, 50/60Hz operation.
• Features a 1P+N pole configuration where the N pole cannot be cut off.
• Supports wiring capacity up to 10mm² on the "Power side".

How to Use

This ZigBee smart switch requires a TUYA ZigBee hub or gateway to connect. It is designed for integration into smart home systems, allowing for remote operation and scheduling via compatible apps. Ensure proper wiring according to the specifications, noting the 1P+N configuration and maximum wiring capacity.

Specifications

• Brand: TONGOU
• Switch Type: Smart Switch
• Protocol: ZigBee 3.0 (Requires ZigBee Hub)
• Operation Mode: ON-OFF
• Current Rating: 10 Amps
• Operating Voltage: AC 90-240V, 50/60Hz
• Poles: 1P+N
• Contact Type: Normally Open
• Connector Type: Screw
• Terminal Type: Screw

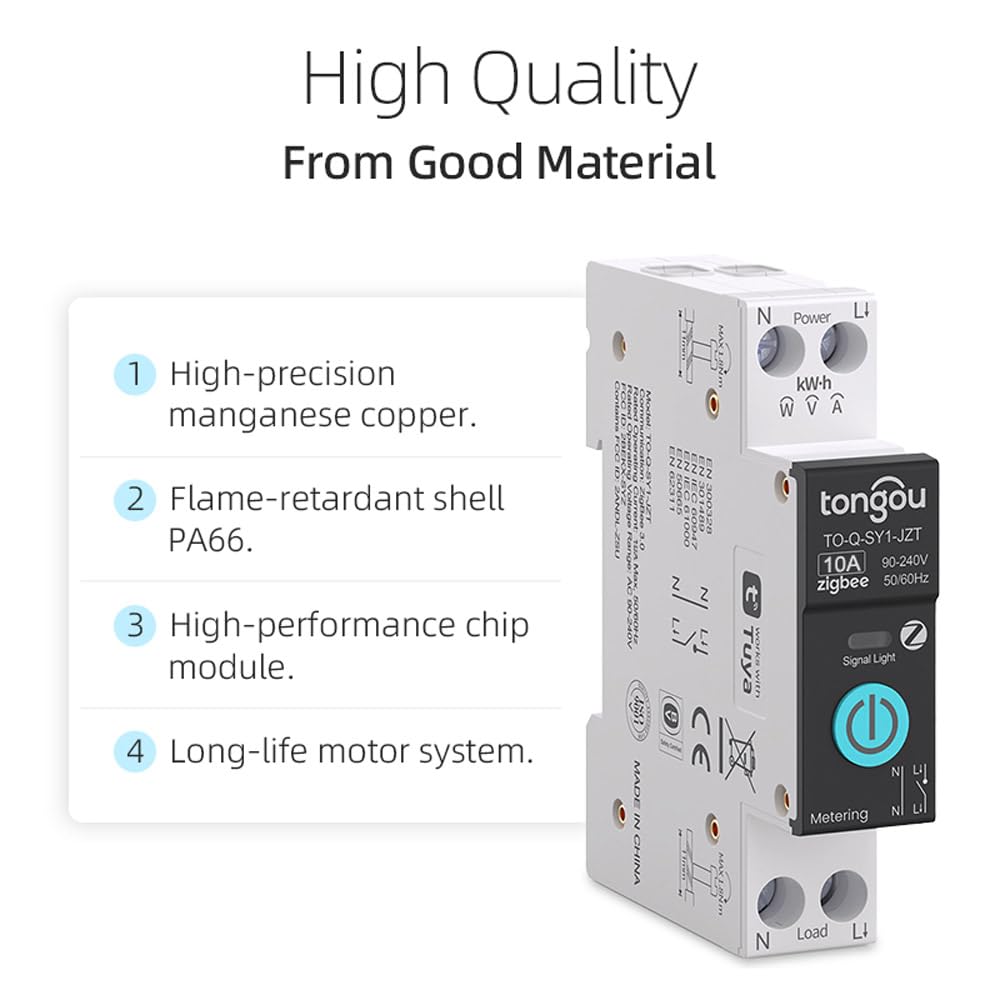

• Material: Nylon PA66
• Mounting Type: DIN Rail Mount
• Dimensions (L x W x H): 3.54 x 0.79 x 3.15 inches
• Maximum Wiring Capacity: 10mm²
• Specifications Met: CE, FCC
• Safety Note: SY1 model does not include overcurrent or leakage protection. Complies with IEC 60947 standard.
