Product Overview

This smart switch operates on an ON-OFF mode and is designed for single-phase circuits. It features a 32 Amp current rating and an operating voltage of 90-240 Volts AC, 50/60Hz. The switch utilizes normally open, relay contacts made of silver, with a screw connector type. It is built with Nylon PA66 material and is designed for DIN rail mounting.

Key Features

• Supports ZigBee 3.0 protocol, requiring a TUYA ZigBee hub/gateway for connection.
• Real-time power monitoring capabilities.
• Remote control and timer settings for automation.
• Compatible with Tuya and Smart Life platforms.
• Voice control functionality.
• 1P+N (1 Pole + Neutral) configuration; the neutral pole is always connected.
• Complies with IEC 60947 standard.
• FCC Certified.

How to Use

Connect the smart switch to your electrical system using the screw terminals, ensuring it is mounted on a DIN rail. This device requires a TUYA ZigBee hub or gateway to establish a connection for remote control and smart home integration. It can be controlled via the Tuya or Smart Life app, and supports voice commands through compatible systems.

Specifications

• Brand: TONGOU
• Model: SY1
• Switch Type: Smart Switch
• Operation Mode: ON-OFF
• Current Rating: 32 Amps
• Operating Voltage: AC 90-240V, 50/60Hz
• Poles Description: 1P+N
• Contact Type: Normally Open
• Contact Material: Relay Contacts: Silver
• Connector Type: Screw
• Terminal Type: Screw

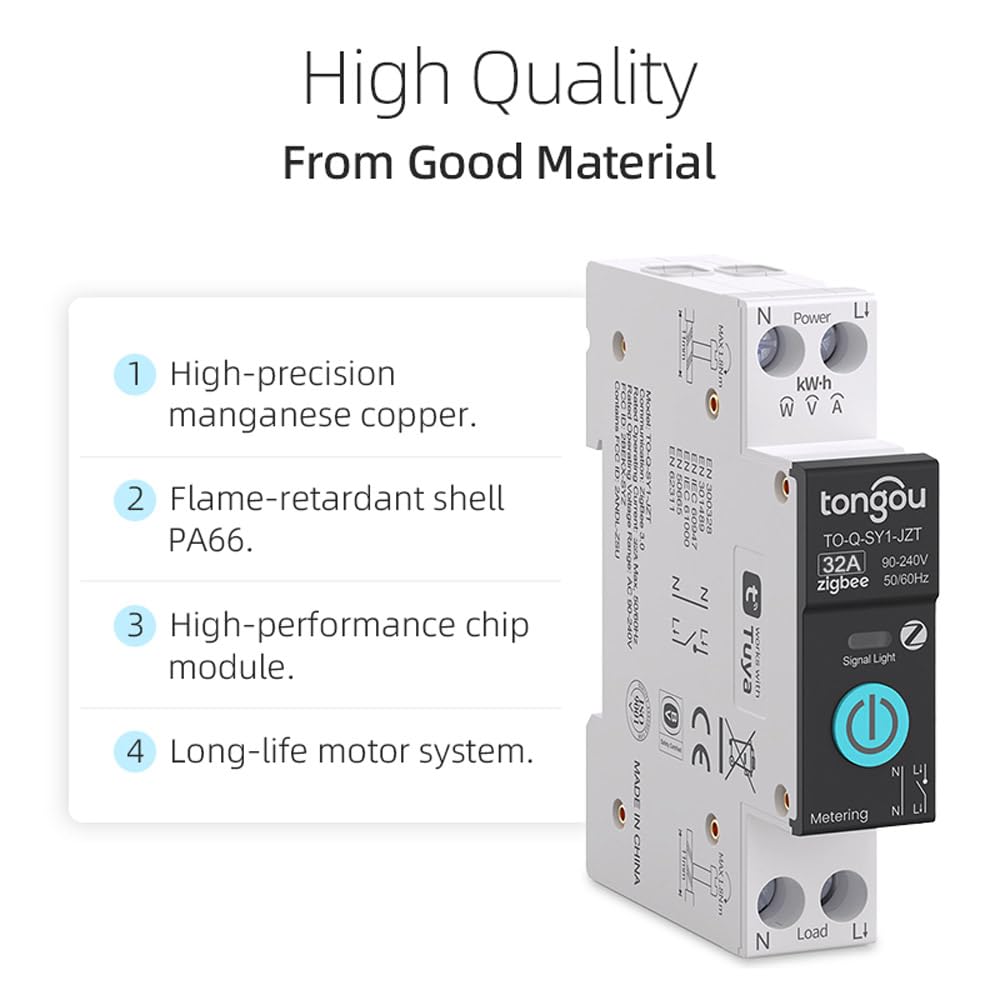

• Material: Nylon PA66

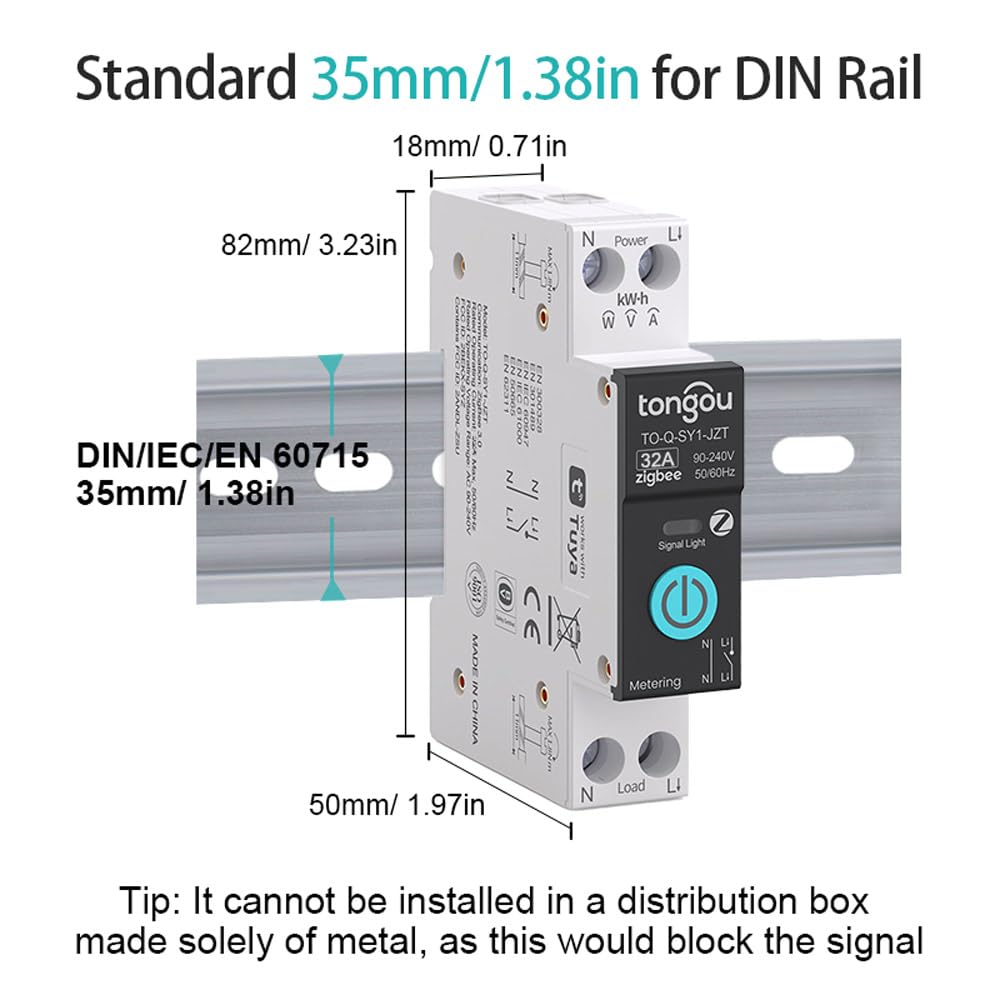

• Mounting Type: DIN Rail Mount
• Maximum Wiring Capacity: 10mm²
• Dimensions (L x W x H): 3.54 x 0.79 x 3.15 inches
• Circuit Type: Single-phase
• Protocol: ZigBee 3.0 (requires ZigBee hub)
• Specifications Met: CE, FCC
• Safety Notes: Complies with IEC 60947 standard.
