Product Overview

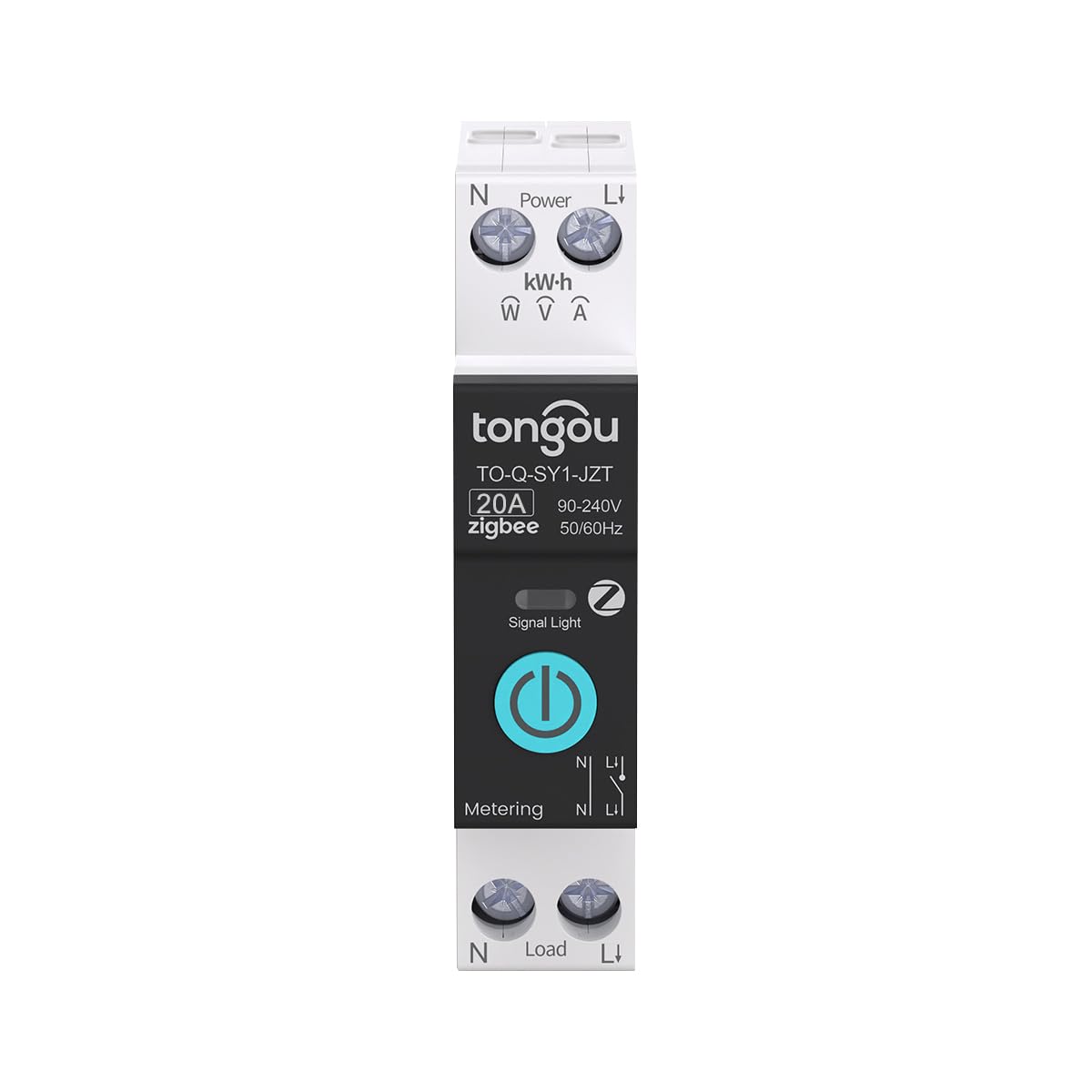

This TONGOU smart switch utilizes the ZigBee 3.0 protocol and requires a TUYA ZigBee hub or gateway for connection. It is designed for home automation, offering remote control, timer settings, and voice control capabilities. The switch supports the Tuya and Smart Life applications. It is compliant with IEC 60947 standards and is FCC certified.

Key Features

• ZigBee 3.0 protocol support (requires ZigBee hub).
• Remote control and timer settings via app.
• Real-time power monitoring.
• Voice control compatible.

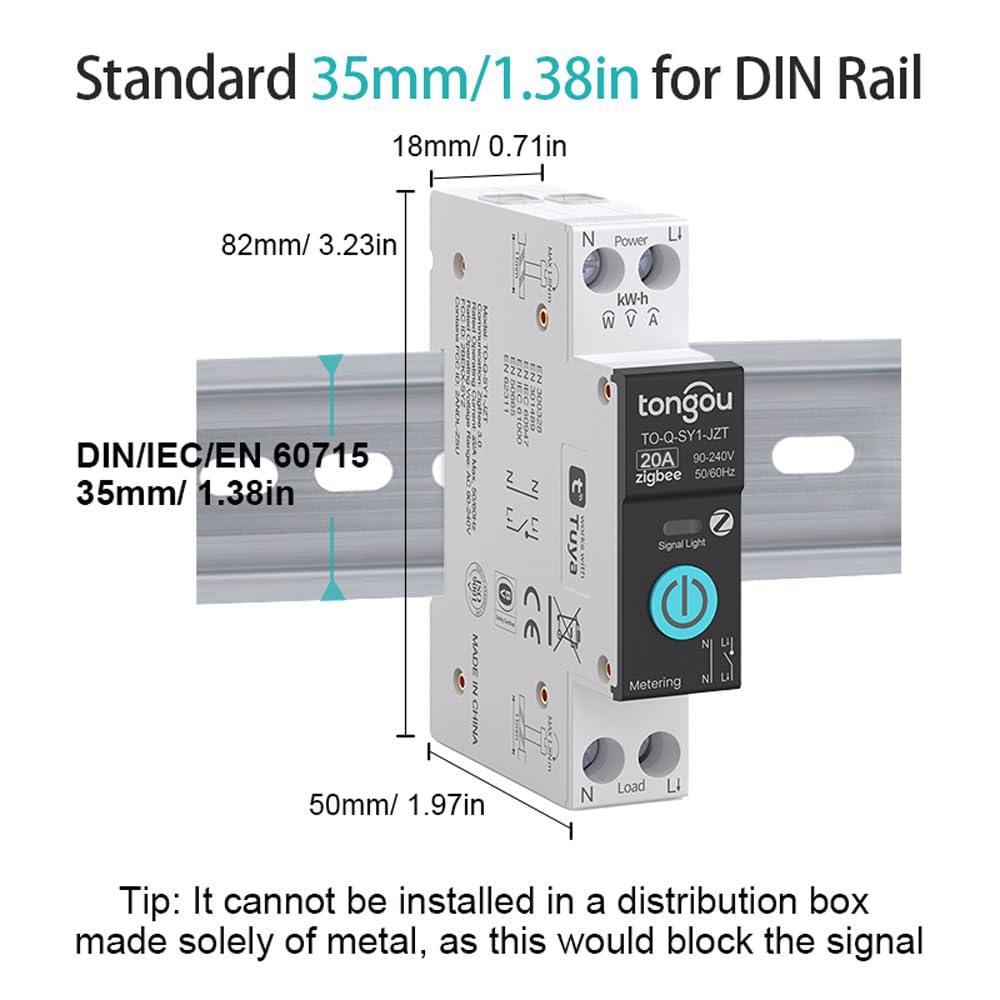

• DIN rail mountable.
• Supports Tuya and Smart Life platforms.
• Complies with IEC 60947 standard.
• FCC Certified.

How to Use

Connect the smart switch to your ZigBee hub and configure it through the Tuya or Smart Life app. Use the app to remotely turn devices on/off, set schedules, monitor power consumption, and utilize voice commands. Ensure the switch is installed according to safety guidelines and wiring capacity limits.

Specifications

• Brand: TONGOU
• Model: SY1 (without overcurrent or leakage protection)
• Operating Voltage: AC 90-240V, 50/60Hz
• Current Rating: 20 Amps
• Poles: 1P+N (N pole cannot be cut off)
• Contact Type: Normally Open
• Connector Type: Screw
• Terminal Type: Screw
• Maximum Wiring Capacity: 10mm²
• Material: Nylon PA66
• Mounting Type: DIN Rail Mount
• Dimensions (L x W x H): 3.54 x 0.79 x 3.15 inches
• Circuit Type: Single-phase
• Actuator Type: No Physical Actuator
• Specifications Met: CE, FCC
• Protocol: ZigBee 3.0
