Product Overview

This TONGOU ZigBee Smart Switch is designed for home automation, allowing for ON-OFF operation with a 25 Amp current rating and an operating voltage of 120 Volts AC. It features a normally open contact type with screw tightening connector and terminal. The switch is a single-phase, DIN rail mountable smart switch with a copper contact material.

Key Features

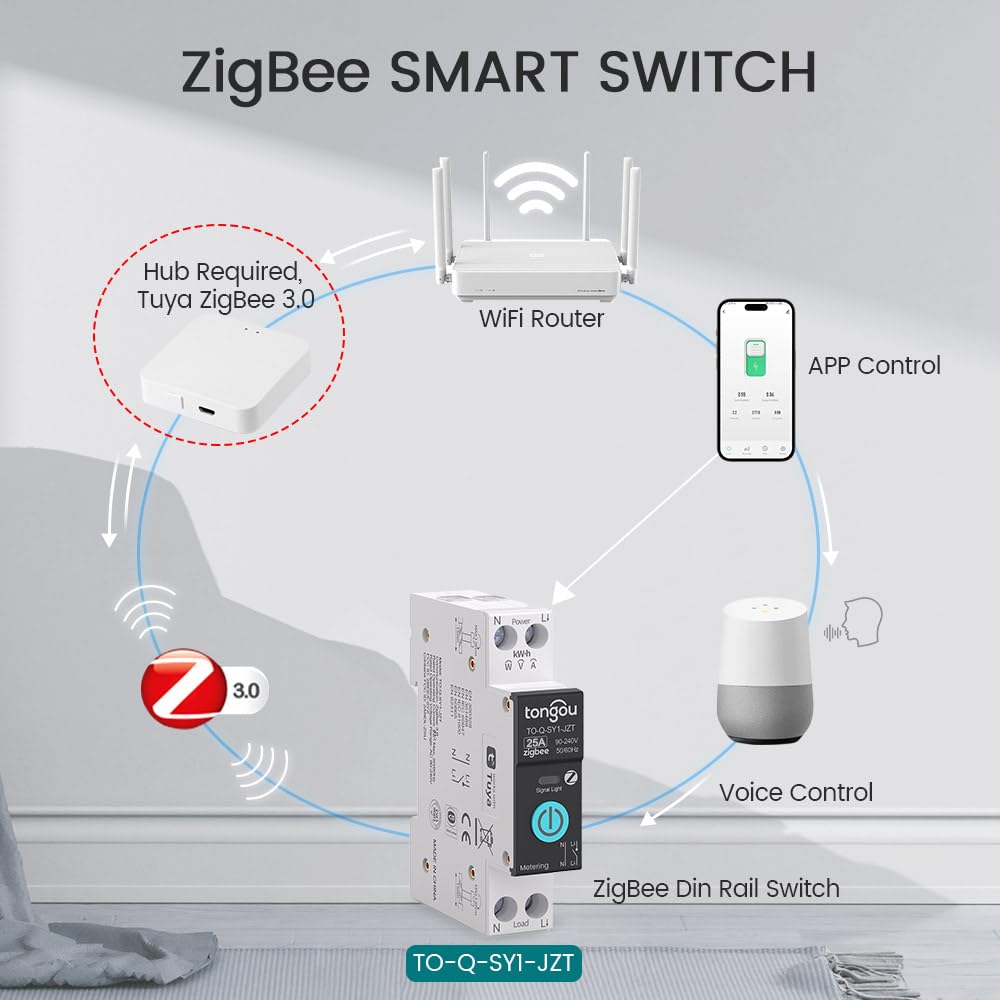

• ZigBee 3.0 Protocol: Requires a TUYA ZigBee hub/gateway for connection.
• Real-time Power Monitoring: Track energy usage.
• Remote Control and Timer: Manage devices from anywhere and set schedules.
• Voice Control Support: Compatible with voice assistants.
• DIN Rail Mount: Designed for easy installation on a DIN rail.
• Complies with IEC 60947 standard.
• 1P+N configuration: N pole is not cut off.

How to Use

Connect the smart switch to your ZigBee hub or gateway. Wire the switch according to the diagram, ensuring proper connection to the power side and load side. Once connected, you can control the switch remotely via the Tuya or Smart Life app, set timers, and use voice commands.

Specifications

• Brand: TONGOU
• Switch Type: Smart Switch
• Protocol: ZigBee 3.0
• Current Rating: 25 Amps
• Operating Voltage: AC 90-240V, 50/60Hz
• Poles: 1P+N
• Contact Type: Normally Open
• Connector Type: Screw Tightening
• Terminal Type: Screw

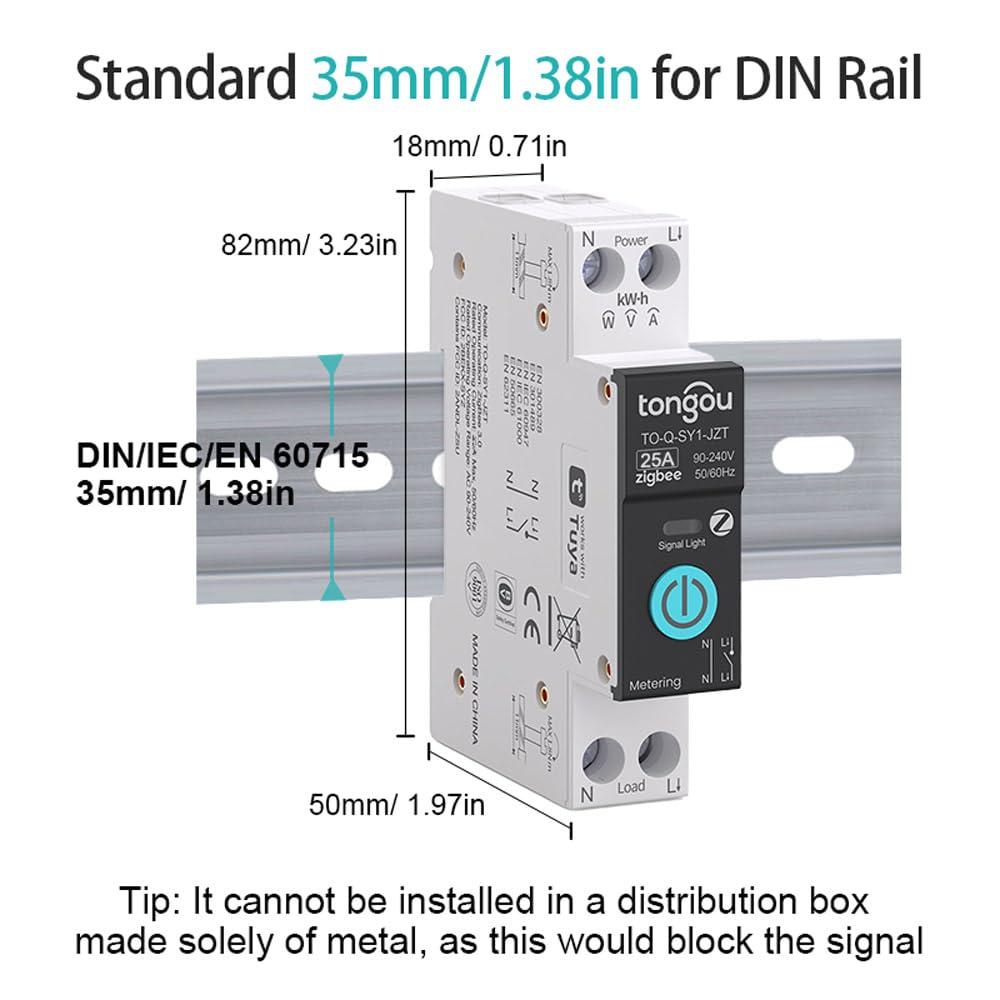

• Mounting Type: DIN Rail Mount
• Circuit Type: Single-phase
• Contact Material: Copper
• Maximum Wiring Capacity: 10mm² (Power side and Load side)
• Dimensions: 3.54 x 0.79 x 3.15 inches
• Compliance: IEC 60947 standard
• Safety Note: SY1 model does not include overcurrent or leakage protection.
