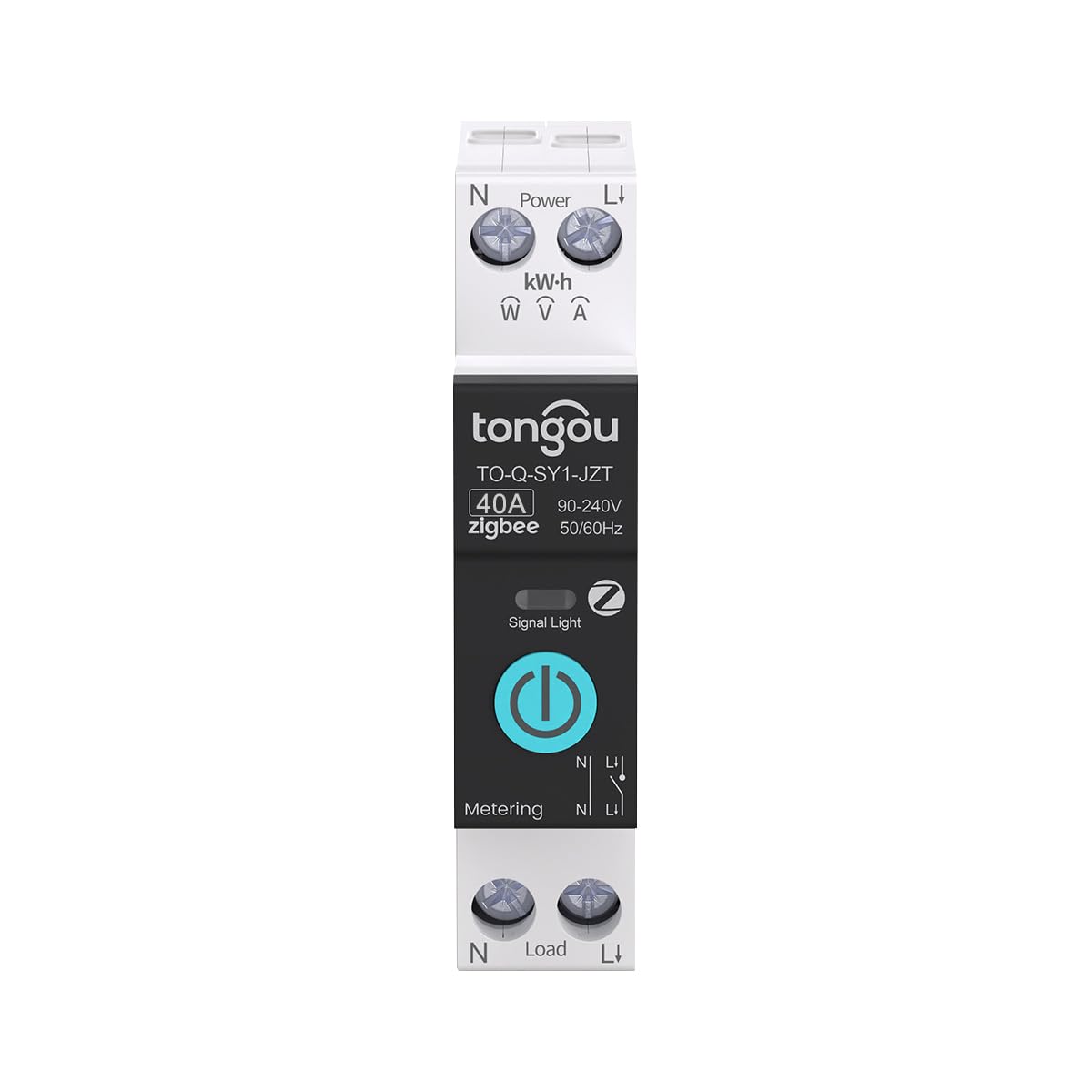

Product Overview

This is a ZigBee 3.0 smart switch designed for home automation. It requires a TUYA ZigBee hub or gateway to connect to your network. The switch operates on an ON-OFF mode and is suitable for single-phase circuits. It is designed to comply with the IEC 60947 standard.

Key Features

• Utilizes ZigBee 3.0 protocol, requiring a TUYA ZigBee hub/gateway.
• Supports remote control and timer settings for automation.
• Provides real-time power monitoring.
• Compatible with Tuya and Smart Life platforms.
• Features voice control capabilities.
• DIN rail mountable for easy installation.
• 1P+N (1 Pole + Neutral) configuration where the N pole cannot be cut off.

How to Use

Connect the smart switch to your electrical system using screw terminals. Ensure it is paired with a compatible TUYA ZigBee hub/gateway. Once connected, you can control the switch remotely via the Tuya or Smart Life app, set timers, and monitor power consumption. Voice control is also available if integrated with a compatible system.

Specifications

• Brand: TONGOU
• Model: SY1 (without overcurrent or leakage protection)
• Switch Type: Smart Switch
• Protocol: ZigBee 3.0
• Operation Mode: ON-OFF
• Current Rating: 40 Amps
• Operating Voltage: AC 90-240V, 50/60Hz
• Poles Description: 1P+N (Neutral pole cannot be cut off)
• Contact Type: Normally Open
• Connector Type: Screw
• Terminal Type: Screw
• Contact Material: Silver
• Switch Material: Nylon PA66
• Mounting Type: DIN Rail Mount
• Maximum Wiring Capacity: 10mm²
• Dimensions (L x W x H): 3.54 x 0.79 x 3.15 inches
• Specifications Met: CE, FCC
