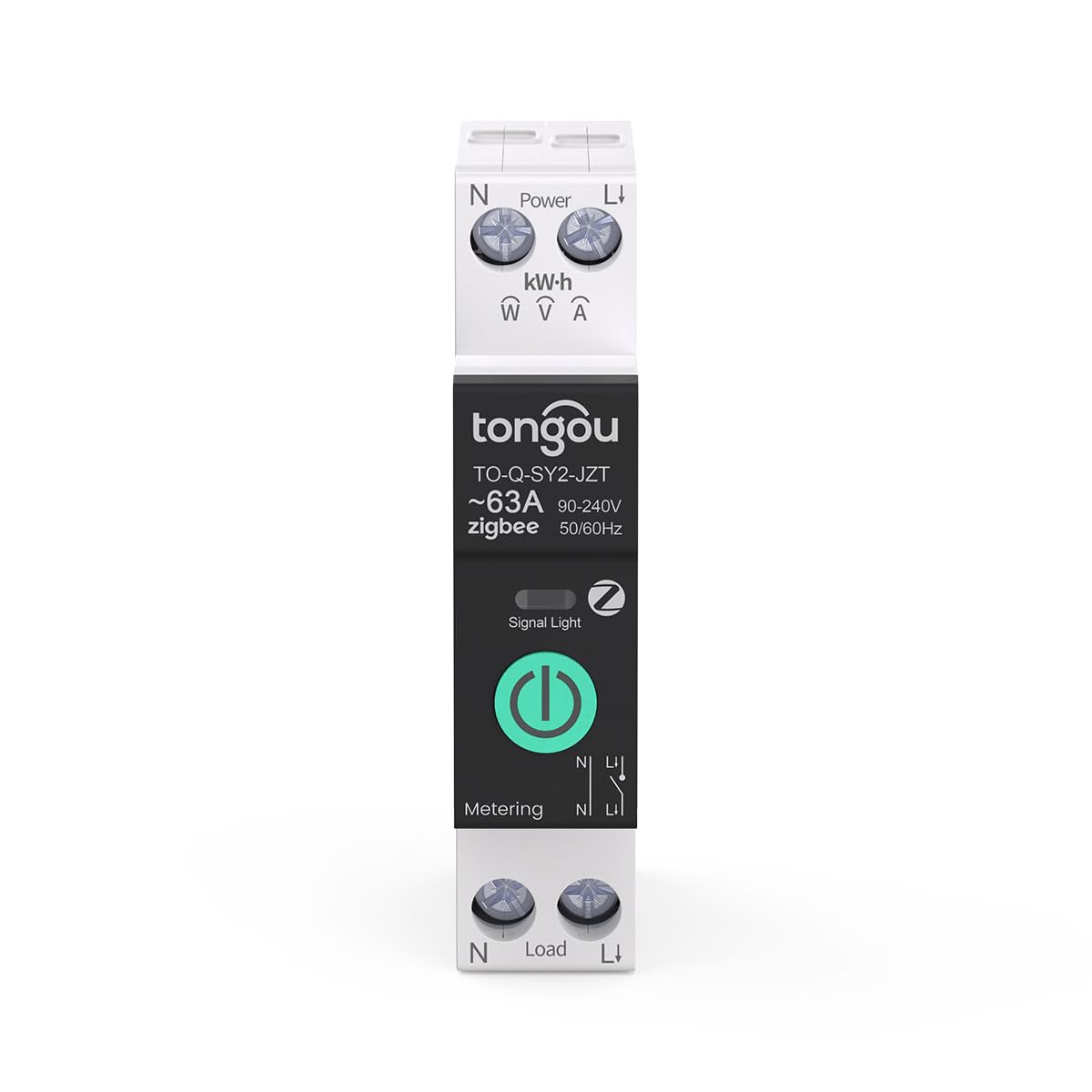

Product Overview

This is a smart Zigbee 3.0 switch designed for single-phase circuits. It operates in an ON-OFF mode and features over-current protection, high power protection, and high CPU temperature protection. The switch is designed for DIN rail mounting.

Key Features

• Supports ZigBee 3.0 protocol for stable smart home operation (requires a compatible Tuya ZigBee hub/gateway).

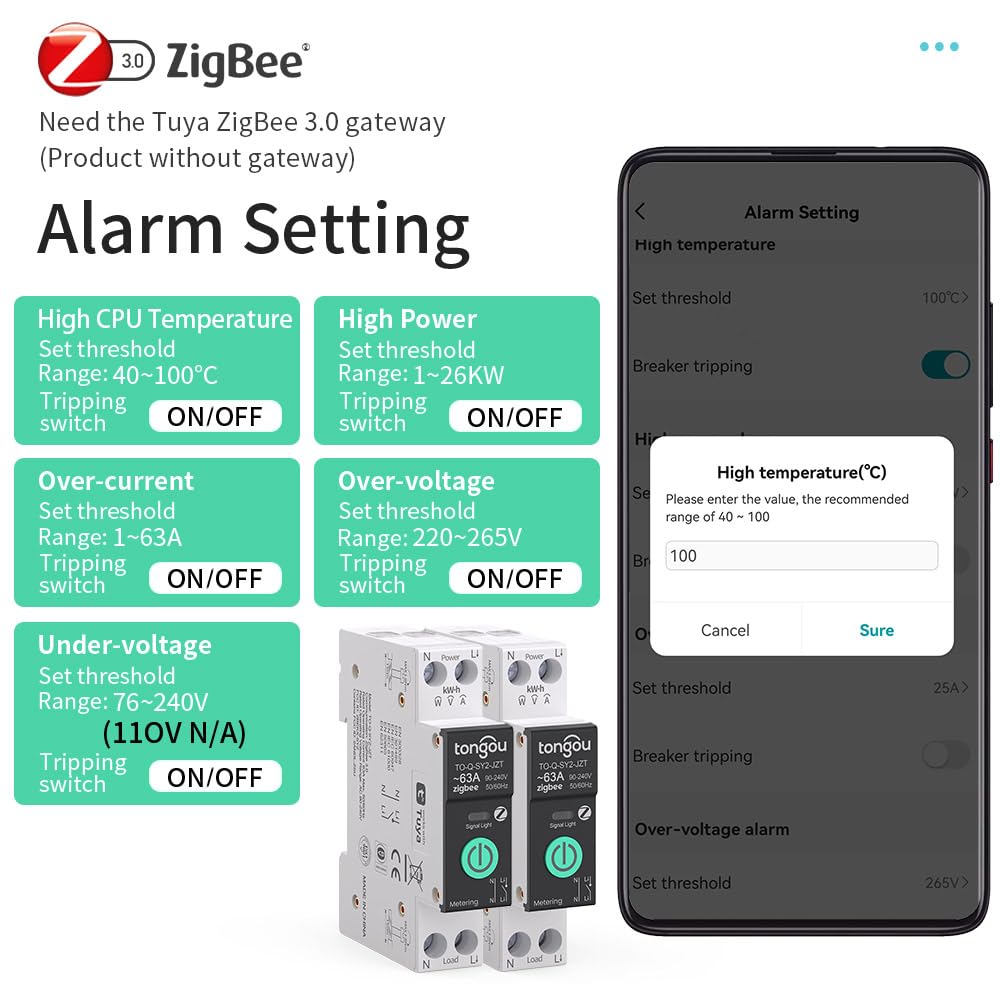

• Features over-current, high power, and high CPU temperature protection.
• Adjustable current rating up to 63A.
• Enables remote control via Tuya or Smart Life applications.

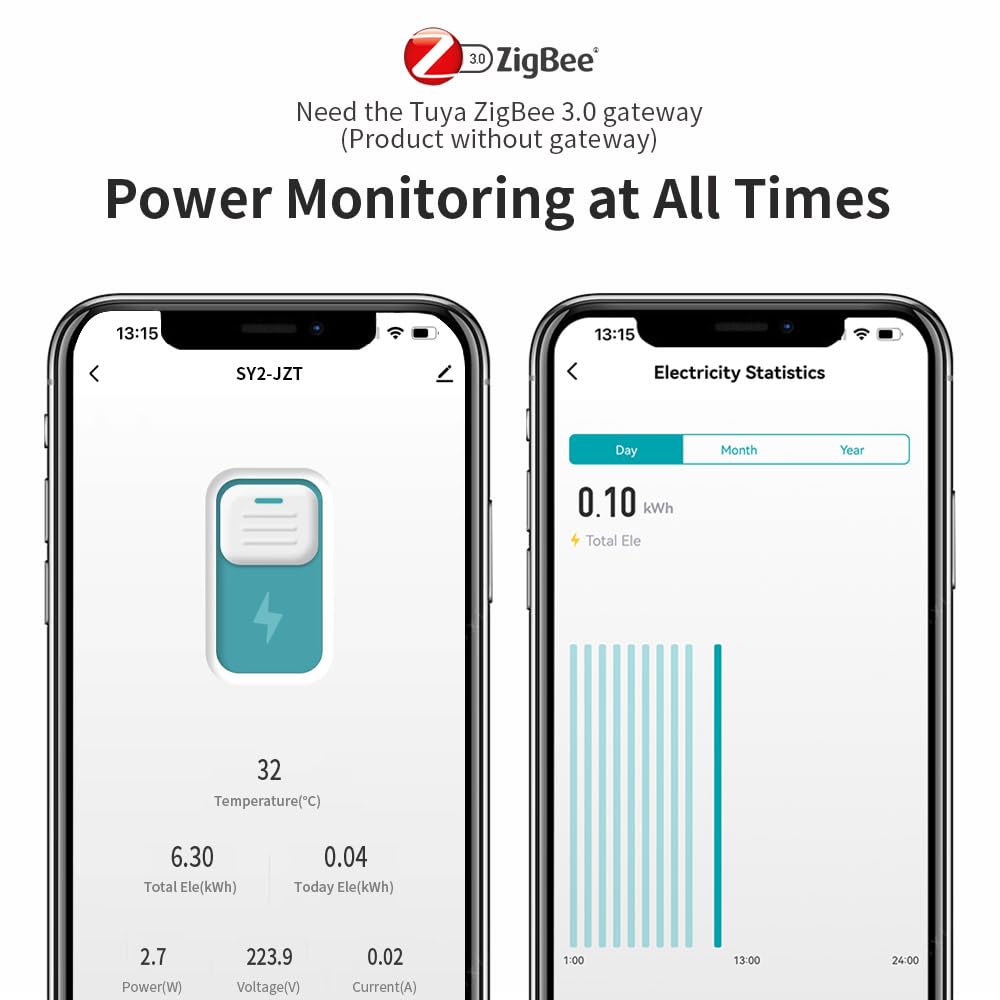

• Provides real-time energy monitoring.
• Supports voice control.

How to Use

To use this smart switch, connect it to a compatible Tuya ZigBee hub or gateway. Ensure the gateway's firmware version meets the product's requirements. The switch can be controlled remotely through the Tuya or Smart Life app and may support voice commands.

Specifications

• Brand: TONGOU
• Switch Type: Smart Switch
• Protocol: ZigBee 3.0
• Current Rating: Adjustable 1-63A
• Operating Voltage: 120 Volts (AC)
• Circuit Type: Single-phase
• Mounting Type: DIN Rail Mount
• Contact Type: Normally Open
• Connector Type: Screw
• Terminal Type: Screw
• Contact Material: Silver (Relay Contacts)
• Material: Nylon PA66
• Dimensions: 3.54 x 0.79 x 3.15 inches (L x W x H)
• Certifications: CE, FCC
• Operation Mode: ON-OFF
