Product Overview

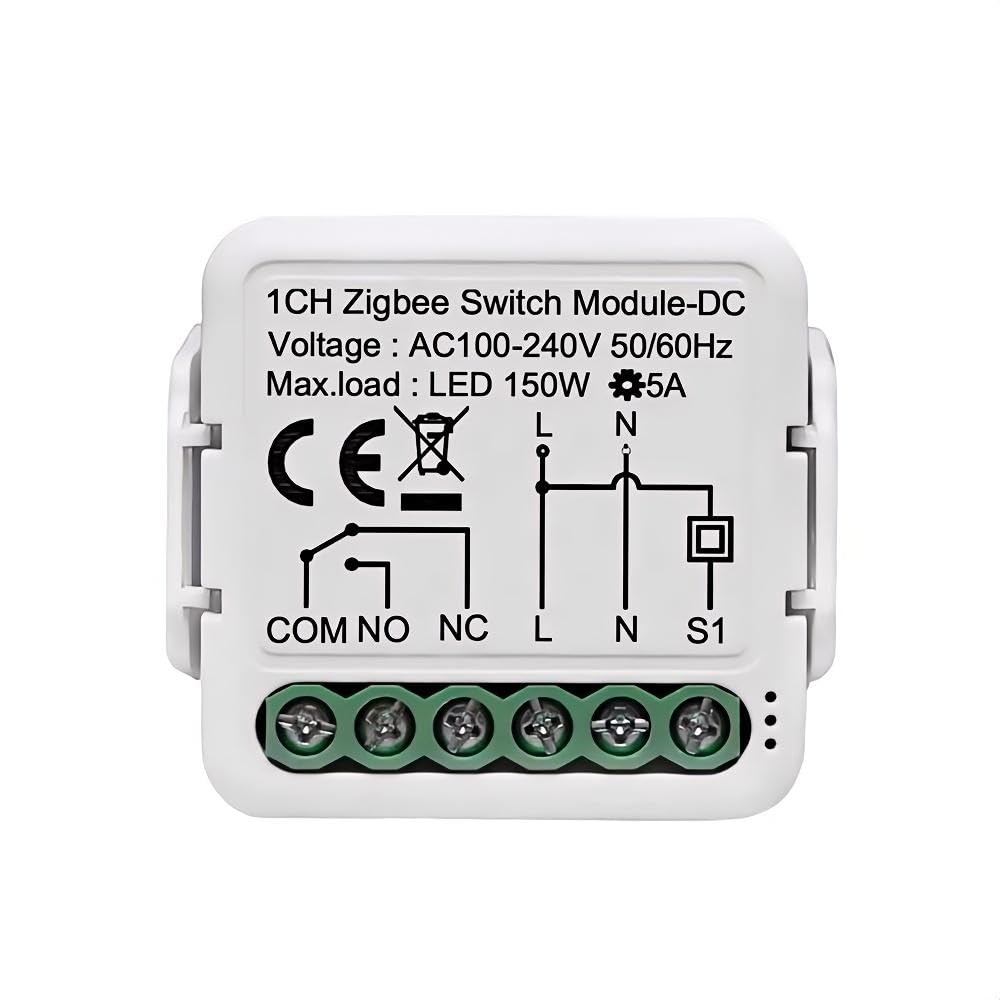

This Ururtm 1-channel smart relay switch module allows for remote and voice control of connected devices. It is compatible with the Tuya Smart Life app, Alexa, and Google Home, enabling automation of lights and garage doors. The module features a clean contact, passive output, and an ABS case.
Key Features
- Remote control via Tuya Smart Life app
- Voice control compatible with Alexa and Google Home
- Schedule timing functions including countdown, sunrise/sunset, and loop timers
- Overload protection for safety
- NO/NC terminal for external switch or sensor connection
- Inching mode available for gate door automation

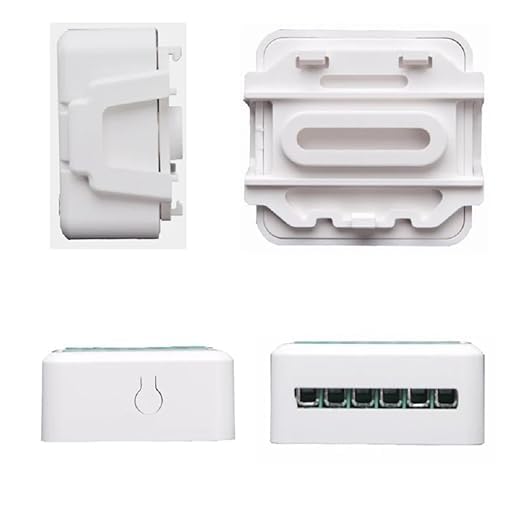

- Includes a compact DIN rail enclosure
How to Use

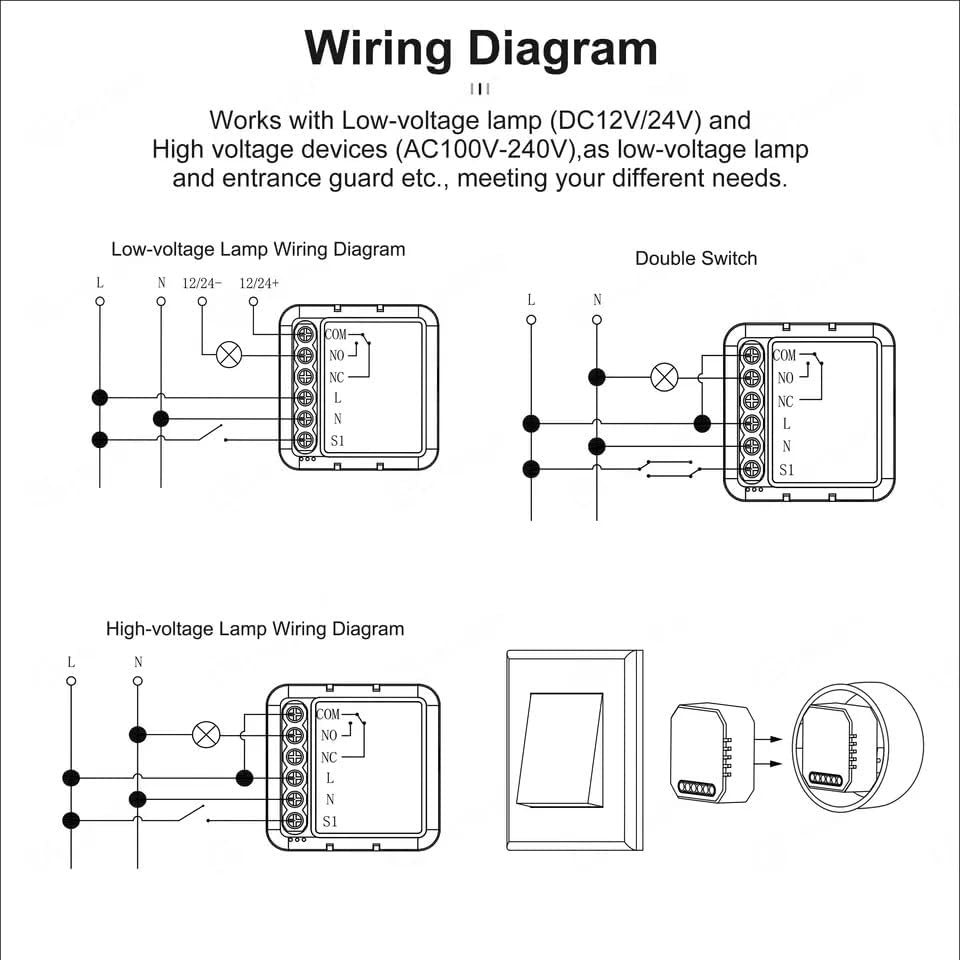

Connect the module to your AC 110-240V power supply. Use the Tuya Smart Life app to set up remote control, voice commands, and scheduling timers. The module can be integrated with external switches or sensors via the NO/NC terminal. Configure inching mode in the app for specific applications like garage door automation.
Specifications
- Brand: Ururtm
- Connector Type: Clamp
- Contact Material: Copper
- Contact Type: Normally Open
- Current Rating: 5 Amps
- Mounting Type: DIN Rail Mount
- Input Voltage: AC 110-240V
- Output Type: Passive (Clean Contact)
- Case Material: ABS
