Product Overview

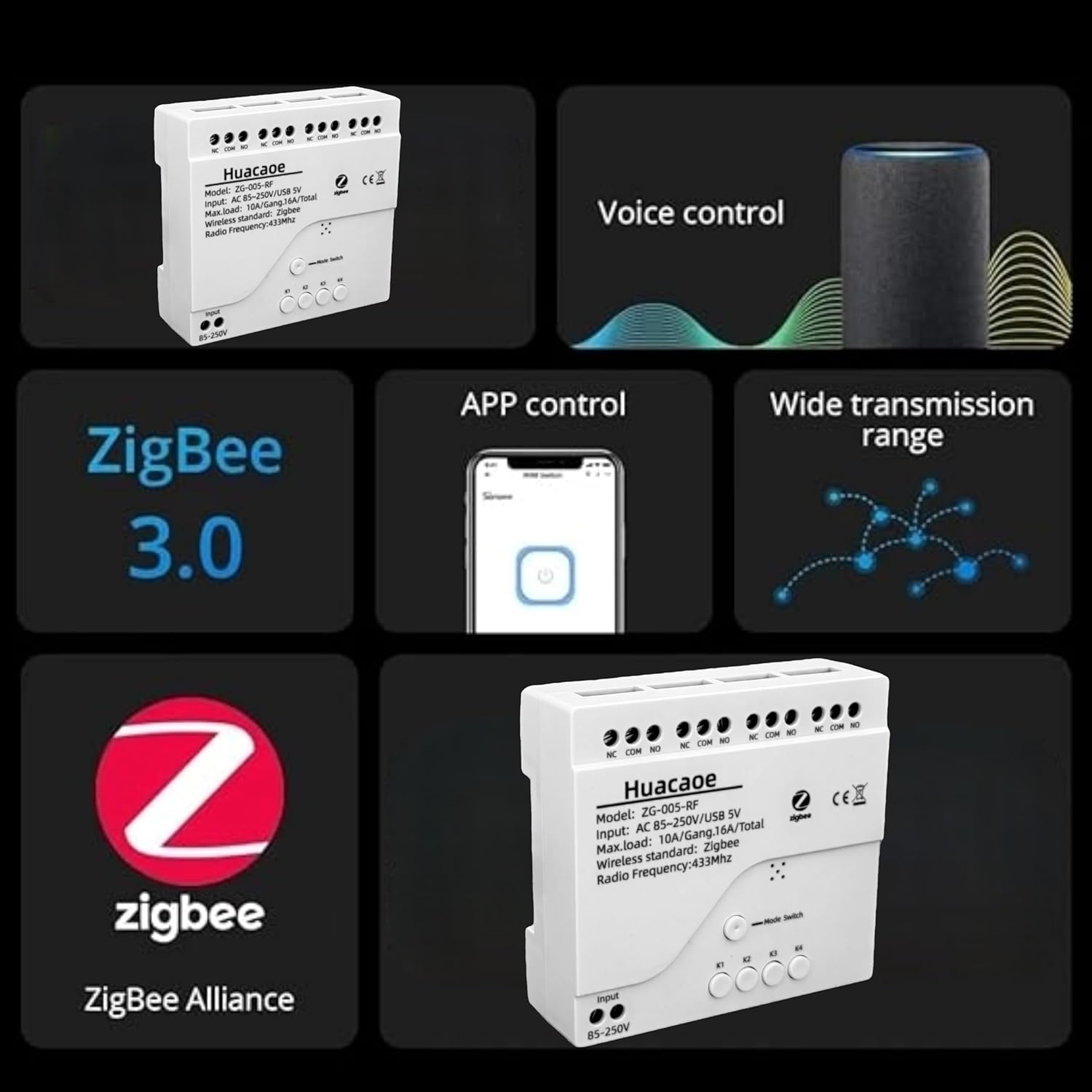

This Huacaoe Zigbee Smart Switch Module allows for wireless remote control of up to four channels. It operates with a 10 Amp current rating and an AC input voltage of 85-250V. The module supports multiple operating modes, including inching, self-locking, and interlock, providing flexibility for various applications such as automating garage doors, shutters, blinds, or curtains. It requires a Tuya Zigbee Gateway hub for setup and integration with smart home ecosystems like Alexa and Google Home.

Key Features

• Wireless remote control for up to 4 channels.
• Compatible with Tuya Smart Life app and Zigbee gateways.
• Voice control integration with Alexa and Google Home (requires Zigbee Hub).
• Supports multiple switch modes: Inching, Self-Lock, and Interlock.
• Automate devices like garage doors, shutters, blinds, and curtains.
• Easy setup and configuration via the Tuya app.

How to Use

Connect the module to your Zigbee Gateway hub via the Tuya Smart app. Once configured, you can link it to your Alexa or Google Home app for voice control. The module can control all four channels simultaneously or individually. Select the desired operating mode (latching, momentary, or interlock) within the app to suit your automation needs.

Specifications

• Brand: Huacaoe
• Model: Zigbee 4CH Relay Smart Switch Module
• Operating Voltage: AC 85-250V
• Current Rating: 10 Amps
• Circuit Type: 4-way
• Contact Type: Normally Open
• Connector Type: Plug In
• Terminal Type: Screw
• Contact Material: Brass
• Switch Type: Relay
• Mounting Type: DIN Rail Mount
• Dimensions (L x W x H): 3.15 x 2.95 x 1.14 inches
• Required Hub: Tuya Zigbee Gateway
