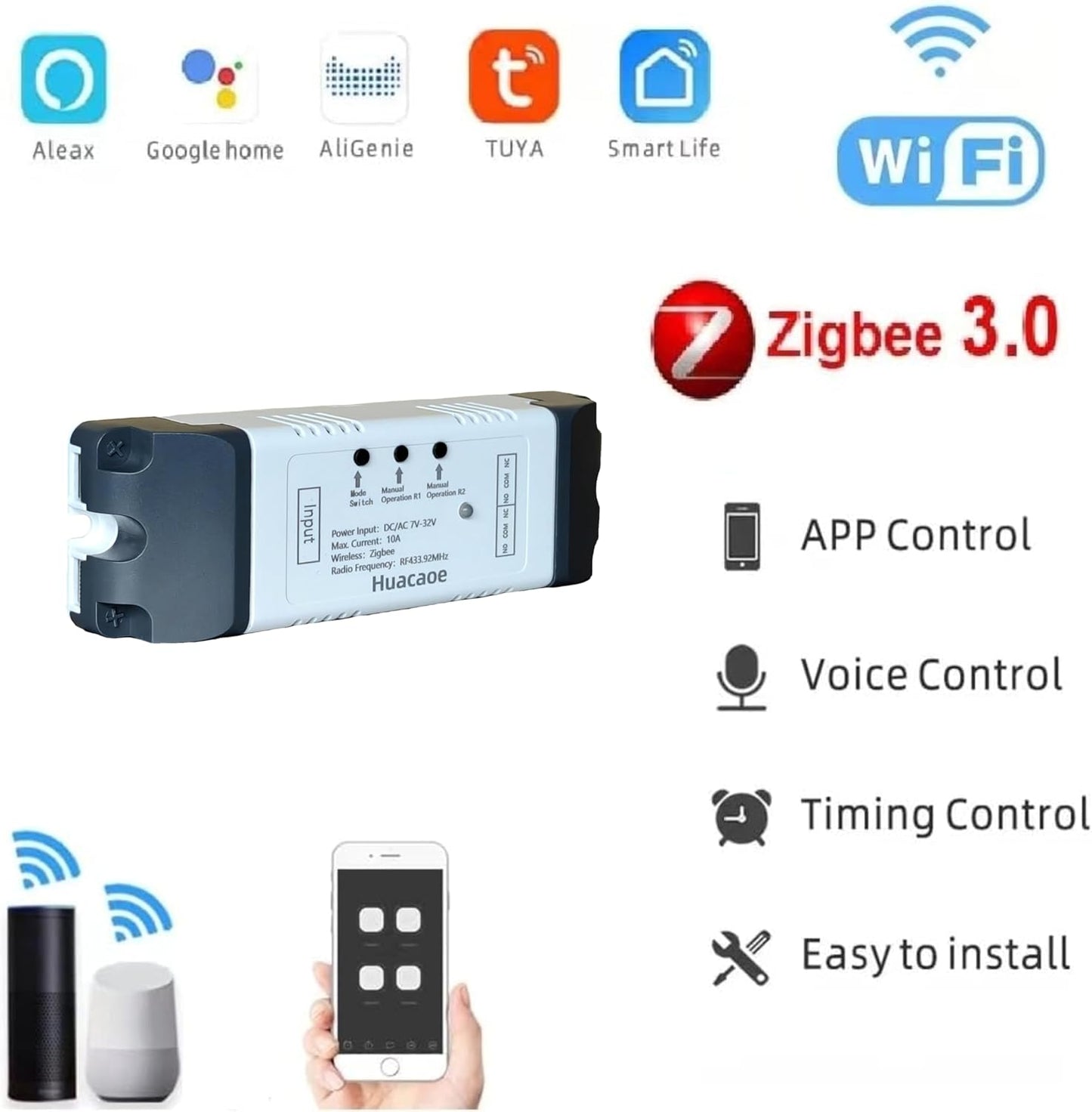

Product Overview

This Huacaoe Zigbee smart switch module features two channels, allowing for remote control of connected devices. It operates with a DC input voltage range of 7-32V and supports various operation modes including ON-OFF-ON, inching, self-lock, and interlock. The module is designed for easy integration into smart home systems that utilize a Zigbee gateway, such as Tuya or ewelink Zigbee bridges. It can be controlled via the Tuya Smart app and linked to voice assistants like Alexa and Google Home for voice commands.

Key Features

• Dual-channel smart wireless Zigbee relay switch.
• Remote ON/OFF control via smartphone app from anywhere.
• Supports inching, self-lock, and interlock switch modes.
• Works with Tuya Zigbee Gateway and compatible smart home hubs.
• Voice control compatible when linked with Alexa or Google Home.
• FCC certified for compliance.

How to Use

Connect the module to your DC power source (7-32V). Configure the device within the Tuya Smart app via your Zigbee gateway. Once set up, you can control each channel independently through the app or by using voice commands if linked to Alexa or Google Home. For direct connection to Alexa via an Echo device with a Zigbee hub, it may be discovered as a single channel.

Specifications

• Brand: Huacaoe
• Channels: 2
• Input Voltage: DC 7-32V
• Current Rating: 10 Amps
• Operation Mode: ON-OFF-ON, Inching, Self-Lock, Interlock
• Contact Type: Normally Open
• Connector Type: Plug In
• Terminal Type: Plug in
• Contact Material: Brass
• Mounting Type: DIN Rail Mount
• Dimensions (L x W x H): 4.84 x 1.65 x 1.1 inches
• Specification Met: FCC
• Requires: Tuya Zigbee Hub
