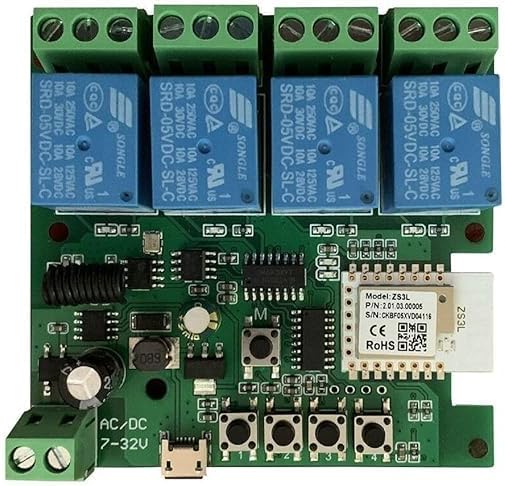

Product Overview

This smart switch module operates automatically and is designed for remote control applications. It utilizes the ZigBee 3.0 protocol for easy integration with compatible hubs. The module supports USB 5V or AC/DC 7-32V working voltage and can be used for various home appliances, including DIY garage door openers.

Key Features

• Requires a ZigBee hub (not included) for operation; does not connect directly to Wi-Fi.
• Compatible with various ZigBee 3.0 hubs and voice assistants like Alexa and Google Home.
• Features a one-key pairing process for quick addition to a ZigBee gateway.
• Offers three working modes: inching, self-locking, and interlock.
• Suitable for DIY projects and controlling home appliances.

How to Use

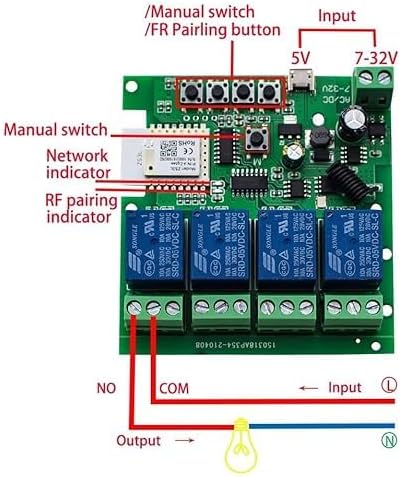

Connect the module to a compatible ZigBee hub. Once paired, you can control connected devices remotely via the hub's app or voice commands through integrated assistants like Alexa or Google Home. The module supports multiple operating modes, including inching, self-locking, and interlock, to suit different application needs.

Specifications

• Brand: Huacaoe
• Operating Voltage: DC 7-32V or USB 5V
• Current Rating: 10 Amps
• Wattage: 1 watt
• Contact Type: Normally Open
• Connector Type: Through Hole
• Contact Material: Brass
• Upper Temperature Rating: 70 Degrees Celsius
• Dimensions (L x W x H): 2.95 x 2.91 x 0.79 inches
• Mounting Type: Wall Mount
• Specification Met: CCC
• Protocol: Zigbee 3.0
• Channels: 4
